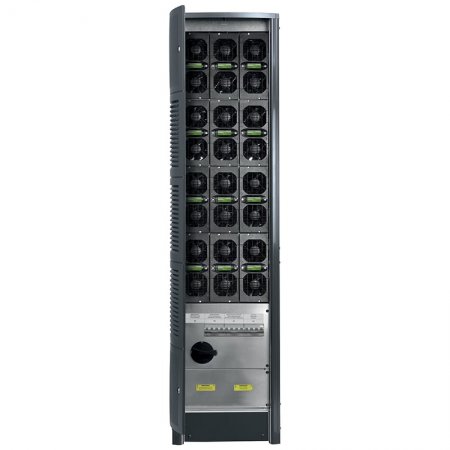

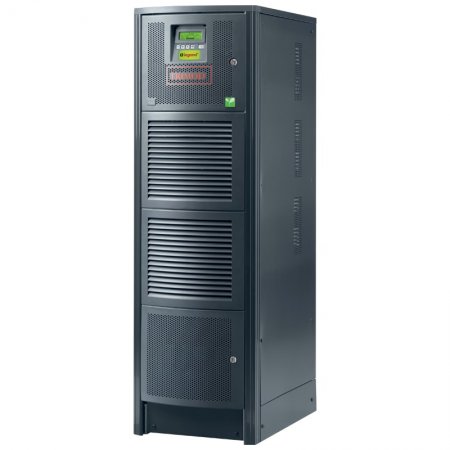

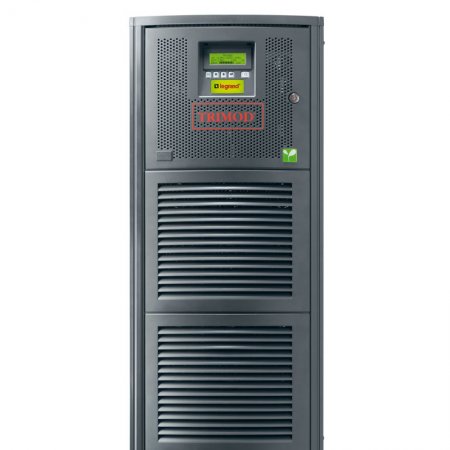

TRIMOD HE UPS is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.
Are made up of individual single phase modules which are redundant and selfconfiguring and it delivers a rated power from 10 to 80kW. Batteries are lead acid, sealed, free maintenance, valve regulated, and arranged, inside the UPS or external battery cabinet, in dedicated Drawers.
General features
- Three-phase modular UPS systems
- Power from 10 to 80 kW NEW
- VFI-SS-111 on-line double conversion
- High efficiency up to 96%
- Power factor 1
- Adaptable, expandable and redundant solutions (configuration phase In/Out, 3-1)
- Easy and quick maintenance
- Low environmental impact
- Diagnostic, monitoring, historical data, parameter setting by display
- Low size and foot print
- New cabinet sizes to increase backup time, to improve scalability and to optimize the system
Functions
- Multi control board function NEW
- Dual input function NEW
- Plug & Play technology NEW
- Menu available in 7 languages
- Frequency converter fin 40-70Hz fout 50/60Hz (can be selected by the user)
- Operates with a power-supply unit
- Three independent output phases
- Eco Mode
- EPS Mode
- Adjustable output voltage with 1V intervals (190÷245V)
- Bypass activation speed control
- Events log with date and time
- Overall historical data and for each individual power module
- Automatic recognition of the power modules
They contain 5x9 Ah batteries with a plug-in connection and a hot-swap system. The minimum amount of battery drawers is 4.

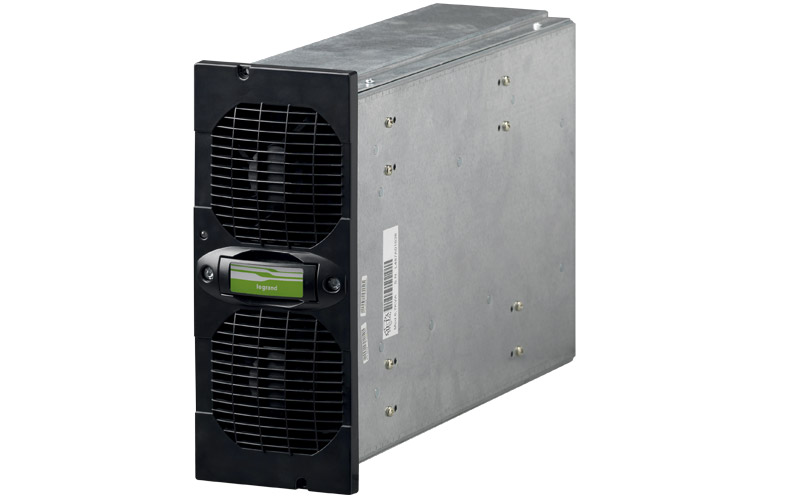

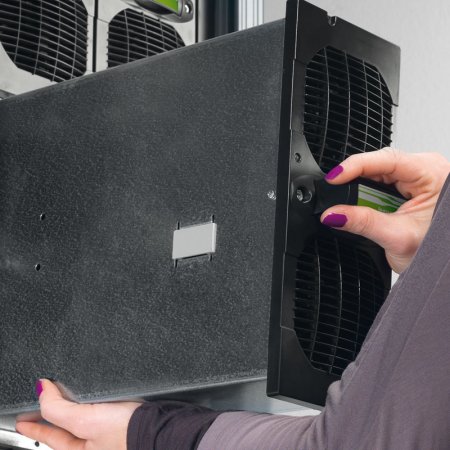

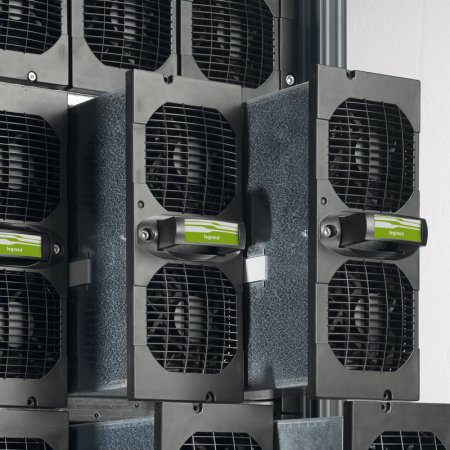

Single-phase 3,4,5 and 6.7 kVA module. Extremely compact and easy to handle, fitted with a hot-swap system.
